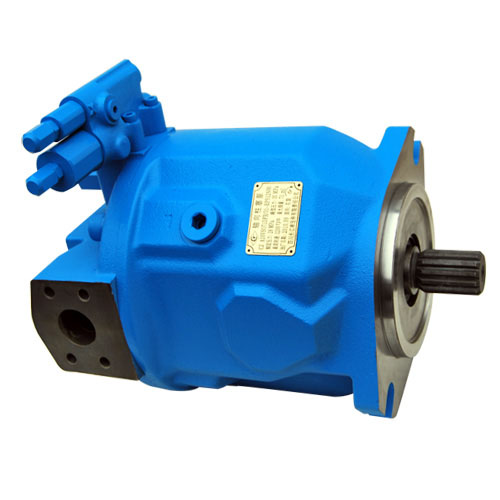

(1).Swash plate design axial variable piston pump used in open circuit.
(2).Continuous work pressure can reach 280bar,the highest instantaneous work pressure can reach 350bar.
(3).The flow is directly proportional to the drive rotate speed and the displatement,and can make stepless variable come true by adjusting the obliquity of the swash plate.
(4).Wide range of controls such as DR,DFLR etc.Short response times.
(5).Low noises level,High efficiency,High reliability and long time service life.
(6).Small volume,High power density.
(7).Excellent oil absorbency.
(8).Axial and radial loading of drive shaft possible.
(9).SAE and ISO mounting flange.
(10).Thru drive option for multi-circuit system
SIZES
18
28
45
71
100
140
Displacement
Vgmax
�M3
18
28
45
71
100
140
Max speed
nmax
rpm
3300
3000
2600
2200
2000
1800
Max.flow
in nmax
qv
L/min
59.4
84
117
156
200
252
in 1500r/min
qv
L/min
27
42
68
107
150
210
Max.power(��p=280bar)
in nmax
Pmax
Kw
27.7
39
55
73
93
118
in 1500r/min
Pmax
Kw
12.6
20
32
50
70
98
Max.torque(��p=280bar)
in Vgmax
Tmax
Nm
80.1
125
200
316
445
623
weight
m
Kg
12
15
21
33
45
60
