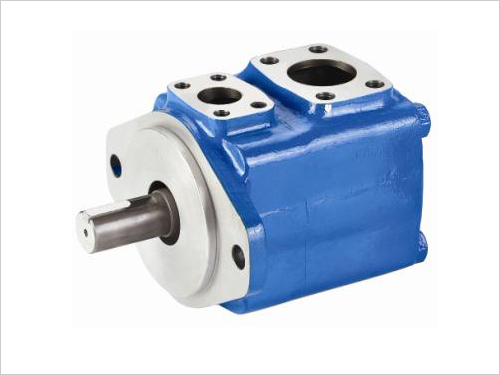

V series hydraulic vane single pump
Description:
V Series Single Pump
Displacement range:7.5-237ml/r
Maximum pressure:14-21MPa
Maximum speed:1800r/min
For plastic machinery, shoe machinery, machine tools, die casting and metallurgical equipment, high-performance letters vane pump.
Features:
1. with letters and hydraulic balance of the structure of leaves, reducing the pressure on the stator blade, the performance is more stable and longer life.
2.12 leaves the system reduces the amplitude of flow pulsation, low noise characteristics suit.
3. more displacement, multi-axis out of the oil port encompasses four different relative positions, allowing users to use more flexible.
4. pump outlet core structure, field maintenance more convenient.
(F3-) |
N25V |
19 |
A |
-1 |
A |
22 |
R |
Supra note |
serial number |
displacement Code |
Port Connection |
shaft in the form |
oil outlet location |
Design No. |
rotation |
Unmarked -
Department of Petroleum oil,
Emulsion
Water glycol fluid
F3-phosphate solution |
N20V |
2,3,4,5,6,7,8,
9,10,11,12,14 |
A-SAE
4Flange bolts |
1-parallel key shaft
151 - spline shaft
|
(From the cover of the pump depends)
A-contralateral inlet
B-clockwise from the inlet 90
C-the same side of the inlet
D-clockwise from the inlet 90 |
22 |
(From the pump shaft to see)
L-counterclockwise rotation
R-clockwise |
N25V |
10,12,14,15,17,
19,21,25 |
N35V |
21,25,30,32,35,
38,45 |
1 - keyed shaft
86 - Heavy keyed shaft
11 - Spline |
N45V |
42,45,50,57,60,
66,75 |
|
At 1200r/min and 0.69MPa (100psi) rated displacement |
|
