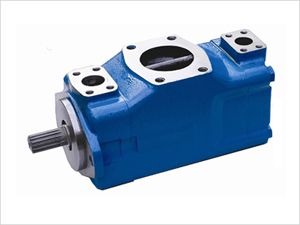

V Series Double-pump
Description:
V Series Double-pump
Displacement range:40-384ml/r
Maximum pressure:14-21MPa
Maximum speed:1800r/min
(F3-) |
N3525V |
38 |
A |
17 |
-1 |
AB |
22 |
R |
Supra note |
serial number |
shaft end pump displacement code |
Port Connection |
cover end pump displacement code |
shaft in the form |
oil outlet location |
Design No. |
rotation |
Unmarked:
Department of Petroleum Oil
Emulsion
Water - glycol
F3: phosphate ester fluids |
2520V |
10,12,14,15,
17,19,21,25 |
A-SAE
4Flange bolts |
2,3,4,5,6,
7,8,9,10,
11,12,14
|
1-parallel key shaft
151 - spline shaft |
The table below |
22 |
(From the pump shaft to see)
R-clockwise rotation
L-counter-clockwise |
3520V |
21,25,30,32,
35,38,45 |
2,3,4,5,6,
7,8,9,10,
11,12,14
|
1- parallel key shaft
86 - Heavy keyed shaft HD
11 - Spline |
3525V |
21,25,30,32,
35,38,45 |
10,12,14,
15,17,19,21,25
|
4520V |
42,45,50,57,
60,66,75 |
2,3,4,5,6,
7,8,9,10,
11,12,14 |
4525V |
42,45,50,57,
60,66,75 |
10,12,14,
15,17,19,21,25 |
4535V |
42,45,50,57,
60,66,75 |
21,25,30,
32,35,38,45 |
|
Note: 1200r/min and 0.69MPa (100psi) rated displacement. |
|
