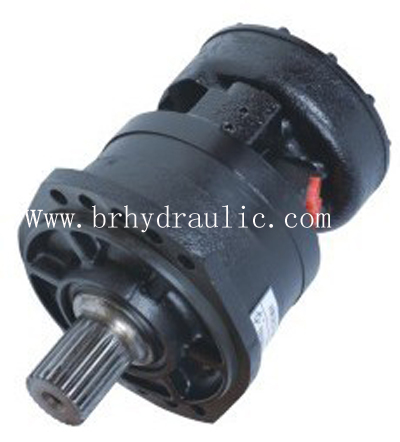

MCR03 Hydraulic piston motor
Description:
MCR03 hydraulic motor,
Radial piston type,
Adopt Imported Bearing and Oil Seal, etc,
Rexroth same series motor perfect replacement,
Designed in control modules,combine freely,
High efficiency,High pressure, low noise,
Radial piston,Low speed,High torque.
Type
|
MCR03-225
|
MCR03-255
|
MCR03-280
|
MCR03-325
|
MCR03-365
|
MCR03-400
|
Displacement(ml/r)
|
Full
|
Semi
|
Full
|
Semi
|
Full
|
Semi
|
Full
|
Semi
|
Full
|
Semi
|
Full
|
Semi
|
255
|
125
|
255
|
125
|
280
|
140
|
325
|
160
|
365
|
180
|
400
|
200
|
Max power(kw)
|
18
|
12
|
18
|
12
|
18
|
12
|
22
|
14
|
22
|
14
|
22
|
14
|
Pressure discrepancy 10MPa Torque
|
405
|
202
|
405
|
202
|
445
|
222
|
517
|
258
|
580
|
290
|
636
|
318
|
Rated compressor(MPa)
|
25
|
Max Torque(N.m)
(Full displacement)
|
1386
|
1570
|
1760
|
1875
|
2105
|
2307
|
Max pressure(MPa)
|
40
|
40
|
40
|
40
|
40
|
40
|
Rated speed (r/min)
|
320
|
280
|
260
|
240
|
240
|
240
|
Speed range(r/min)
|
10-400
|
10-360
|
10-330
|
10-310
|
10-280
|
10-260
|
Application
|
As revolution mechanism of hydraulic system, used for forklift, skid steer loaderskid steer loader, grab, metallurgy mine equipment, shipping port equipment, hydraclic winch, etc.
|
|
